HomeScrewdrivers and WrenchesCountersunk Screw RemovalHex Bit For Rapid Screw Extractor DBZ-54

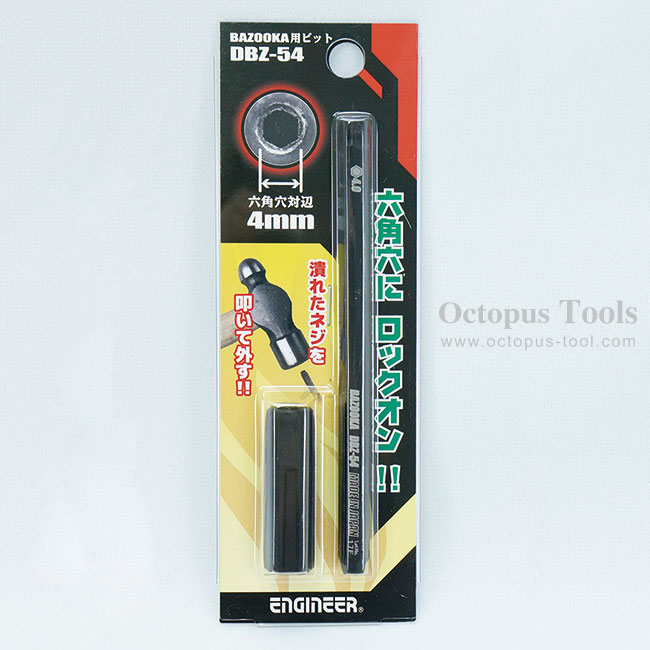

Hex Bit For Rapid Screw Extractor DBZ-54
ENGINEER Brand:
ENGINEER
Safety Verification

Hex Bit For Rapid Screw Extractor DBZ-54

Product No
EDBZ-54
Country of Origin
Japan
International Barcode
4989833014650
Packing
(pcs) G.W. CU'FT
10 0.035KG 0.0049'
inquiry
description

Hex Bit For Rapid Screw Extractor DBZ-54

◆ Having problem in removing flat and damaged screws? Use this ENGINEER screw removal tool to tackle these difficult screws!
◆ For heavily damaged hex socket screws
◆ Sharp and durable blade can stick into the screw recess easily for secure grip.
◆ Length: 105mm
◆ Weight: 26g
◆ Bit Material: Carbon Steel
◆ Please follow the following steps when applying this bit:
1. Clean out any steel chips left in the screw recess.
2. Fix the rubber sleeve to the Bit and position the blade in the recess.
3. Strike the end of the bit with a hammer to stick the blade into the recess.
4. Make sure the bit is self-standing upright, and then affix the grip onto the bit.
5. Do not hit the grip with a hammer.
6. Give a jerk counterclockwise while pressing firmly downward.









Hex Bit For Rapid Screw Extractor DBZ-54
related products
  • Rapid Screw Extractor DBZ-60 Engineer
    Product NOEDBZ-60
    Rapid Screw Extractor DBZ-60 Engineer
    read more
    Rapid Screw Extractor DBZ-60 Engineer

    ◆ Having problem in removing flat and damaged screws? Use this ENGINEER screw removal tool to tackle these difficult screws!
    ◆ 2-in-1 Screw Extractor, time-saving rapid screw removal tool.
    ◆ Simply press down on the screw & twist it out!!
    ◆ High-torque handle grip - standard 6.35mm (1/4") hex drive.

    Material：
    　◎ Bits：Carbon Steel
    　◎ Sleeve：Elastomer (TPR)
    　◎ Handle Grip：ABS, Nylon
    Package included,
    　◎ Bits (DBZ-51 & DBZ-52)
    　◎ Shock-absorbable rubber sleeve
    　◎ High-torque handle grip (W：100mm)





  • 6
    Product NO504.C6NN
    6" Long Nose Locking Pliers C.H. HANSON
    read more
    6" Long Nose Locking Pliers C.H. HANSON

    Overall Length: 6" (150mm)
    Material: Chrome molybdenum steel

    ◆ Easy squeeze release lever.
    ◆ Durable design.
    ◆ Wide applications and your best tool for gripping screws and tubes.
  • Rust Removal Liquid ZC-28 Engineer
    Product NOEZC-28
    Rust Removal Liquid ZC-28 Engineer
    read more
    Screw Rust Removal Liquid ZC-28 Engineer

    Capacity: 100ml
    Chemical Compound: Ammonium Thioglycolate

    ◆ Neutral liquid makes working safely. No acid or alkali contains.
    ◆ Especially designed to remove rust on small components, such as rusted screws.
    ◆ Rust can be removed in seconds!

    [User Manual]:

    1. Apply enough liquid to the rusted screw.
    2. The liquid immediately reacts with the rust and turns purple.
    3. Remove the screw after sufficient penetration.
    4. Rinse it in water after rust removal.
    5. Be sure to apply anti-rust agent.
    6. Be aware of stains and tarnish on the metal parts around the screw.

    [Caution]:

    1. Wear protective equipment such as eyeglasses, gloves, etc. while working to avoid contact with eyes and skin.
    2. Wash your hands after use, and gargle with clean water.
    3. Keep out of reach of children.
    4. Store in a cool and dry place, out of direct sunlight.
    5. This product has a peculiar smell.
    6. Do not inhale or drink.
    7. Do not mix with other chemicals.
    8. In case of eye contact, immediately flush the eye with clean water for at least 15 minutes and seek medical attention.
    9. If swallowed, drink plenty of water and seek medical attention.
    10. If inhaled, immediately move to a place of fresh air and rest and seek medical attention if you feel unwell.
    11. In case of skin contact, immediately rinse thoroughly with clean running water.
  • Extractor Set 4-in-1 DBZ-20
    Product NOEDBZ-20
    Extractor Set 4-in-1 DBZ-20
    read more
    [Specifications]:

    Length: 105mm
    Weight: 25g
    Size: 2mm/2.5-3mm/4.0mm/5.0mm
    Material: Carbon Steel

    [Features]:

    ◆ Set of DBZ-62, 63, 64 & 65 in a plastic carrying case.
    ◆ Works with 2-5 mm (Across flats) stripped hex socket screws.
    ◆ Compatible with High-torque grip DBZ-50G as well as power driver.
    ◆ Plastic case can be used as a container to store bits.
