HT Brand:
HT

Network Modular Plug Crimper HT-N5684R

Product No
513.N5684R
Country of Origin
Taiwan
International Barcode
4716044057271
Packing
(pcs) G.W. CU'FT
5/45 15.66KG -
inquiry
description

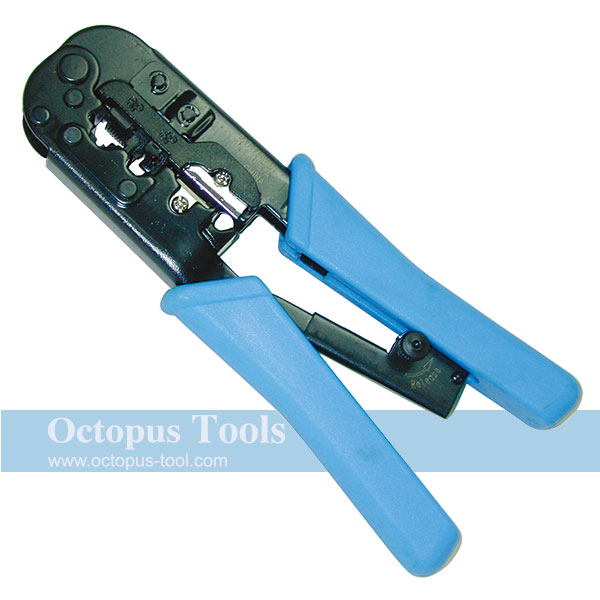

Network Modular Plug Crimper HT-N5684R

Applications: Unshielded 8P8C/RJ45, 6P6C/RJ12, 6P4C/RJ11, 4P4C/4P2C
Ratchet: Yes
Length: 190mm(7.5")
Weight: 316g

[Features]:

◆ Designed for all telecom and network installers.
◆ Integrated round / flat cable stripper and cutter for cable preparation.
◆ Full-cycle ratchet mechanism ensures high quality and consistent termination.
◆ Safety release to quick unlock and eliminate mis-crimp.
◆ Flat cable 1/2" & 1/4" stripping guide without pre-measuring needed.
◆ Blade-guard reduces injury during cutting and stripping operation.








Network Modular Plug Crimper HT-N5684R
