Hex Bit For Rapid Screw Extractor DBZ-53
ENGINEER Brand:
ENGINEER
Safety Verification

Hex Bit For Rapid Screw Extractor DBZ-53

Product No
EDBZ-53
Country of Origin
Japan
International Barcode
4989833014537
Packing
(pcs) G.W. CU'FT
10 0.35KG 0.049'
inquiry
description

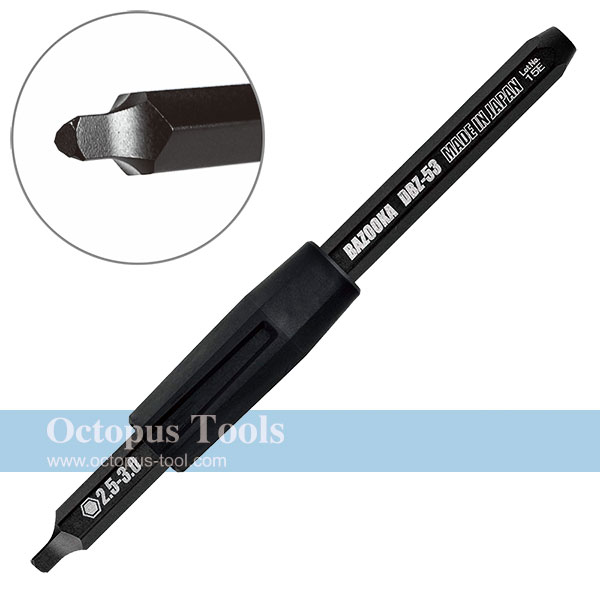

Hex Bit For Rapid Screw Extractor DBZ-53

◆ Having problem in removing flat and damaged screws? Use this ENGINEER screw removal tool to tackle these difficult screws!
◆ For heavily damaged hex socket screws
◆ Sharp and durable blade can stick into the screw recess easily for secure grip.
◆ Length: 105mm
◆ Weight: 26g
◆ Bit Material: Carbon Steel
◆ Please follow the following steps when applying this bit:
1. Clean out any steel chips left in the screw recess.
2. Fix the rubber sleeve to the Bit and position the blade in the recess.
3. Strike the end of the bit with a hammer to stick the blade into the recess.
4. Make sure the bit is self-standing upright, and then affix the grip onto the bit.
5. Do not hit the grip with a hammer.
6. Give a jerk counterclockwise while pressing firmly downward.















Hex Bit For Rapid Screw Extractor DBZ-53
related products
  • Rapid Screw Extractor DBZ-60 Engineer
    Product NOEDBZ-60
    Rapid Screw Extractor DBZ-60 Engineer
    read more
    Rapid Screw Extractor DBZ-60 Engineer

    ◆ Having problem in removing flat and damaged screws? Use this ENGINEER screw removal tool to tackle these difficult screws!
    ◆ 2-in-1 Screw Extractor, time-saving rapid screw removal tool.
    ◆ Simply press down on the screw & twist it out!!
    ◆ High-torque handle grip - standard 6.35mm (1/4") hex drive.

    Material：
    　◎ Bits：Carbon Steel
    　◎ Sleeve：Elastomer (TPR)
    　◎ Handle Grip：ABS, Nylon
    Package included,
    　◎ Bits (DBZ-51 & DBZ-52)
    　◎ Shock-absorbable rubber sleeve
    　◎ High-torque handle grip (W：100mm)





  • 5
    Product NO504.C5CJ
    5" Curved Jaw Locking Pliers C.H. HANSON
    read more
    5" Curved Jaw Locking Pliers C.H. HANSON

    Overall Length: 5" (125mm)
    Material: Chrome molybdenum steel

    ◆ Easy squeeze release lever.
    ◆ Durable design.
    ◆ Wide applications and your best tool for gripping screws and tubes.
  • Rust Removal Liquid Foam Type ZC-29 Engineer
    Product NOEZC-29
    Rust Removal Liquid Foam Type ZC-29 Engineer
    read more
  • Extractor Set 4-in-1 DBZ-20
    Product NOEDBZ-20
    Extractor Set 4-in-1 DBZ-20
    read more
    [Specifications]:

    Length: 105mm
    Weight: 25g
    Size: 2mm/2.5-3mm/4.0mm/5.0mm
    Material: Carbon Steel

    [Features]:

    ◆ Set of DBZ-62, 63, 64 & 65 in a plastic carrying case.
    ◆ Works with 2-5 mm (Across flats) stripped hex socket screws.
    ◆ Compatible with High-torque grip DBZ-50G as well as power driver.
    ◆ Plastic case can be used as a container to store bits.
